Freddies 9 Shaft
900kW Pump Starter Panels
Project Overview
Since 2009, Welkom Winder Services has provided 900kW pump starter panel solutions and ongoing technical support for Freddies 9 Shaft. These heavy-duty starter panels are associated with the control and protection of large pump motors used within demanding mining applications. At a power level of 900kW, motor starting and protection require carefully engineered electrical systems capable of handling substantial operating and starting currents while protecting the motor, starter equipment and upstream electrical infrastructure. The ongoing project demonstrates Welkom Winder Services’ experience in high-power motor control, pump starter engineering and specialised mining electrical systems.
Engineering Challenge
A 900kW motor represents a substantial electrical load. Starting a motor of this size can create significant current demand and electrical stress if the starter system is not correctly engineered. The starter panel must therefore provide dependable switching, appropriate protection and a control architecture capable of supporting reliable pump operation. The engineering challenge lies in balancing motor-starting performance, system protection, electrical-network limitations and long-term operational reliability.
Solution Delivered
Provided 900kW pump starter panel solutions and ongoing technical support, delivering heavy-duty motor control and protection engineered for high-power pumping applications within a demanding mining environment
Result
Reliable high-power pump motor control and protection since 2009, supporting critical pumping infrastructure at Freddies 9 Shaft
Long-Term Client Partnership
Welkom Winder Services’ involvement with 900kW pump starter panels at Freddies 9 Shaft extends from 2009 to the present. This ongoing support reflects long-term experience with large motor-control systems operating within demanding mining environments.
Scope of Services
What is a 900kW Pump Starter Panel?
A 900kW pump starter panel is a heavy-duty motor-control system designed to start, stop, control and protect a large electric pump motor. At this power level, starter systems are typically engineered around medium-voltage electrical infrastructure, depending on the mine’s supply network and motor specification. The panel provides the electrical interface between the mine supply and the pump motor while incorporating the switching, control and protection required for dependable operation. The exact starter technology depends on the electrical system, motor characteristics and operational requirements.

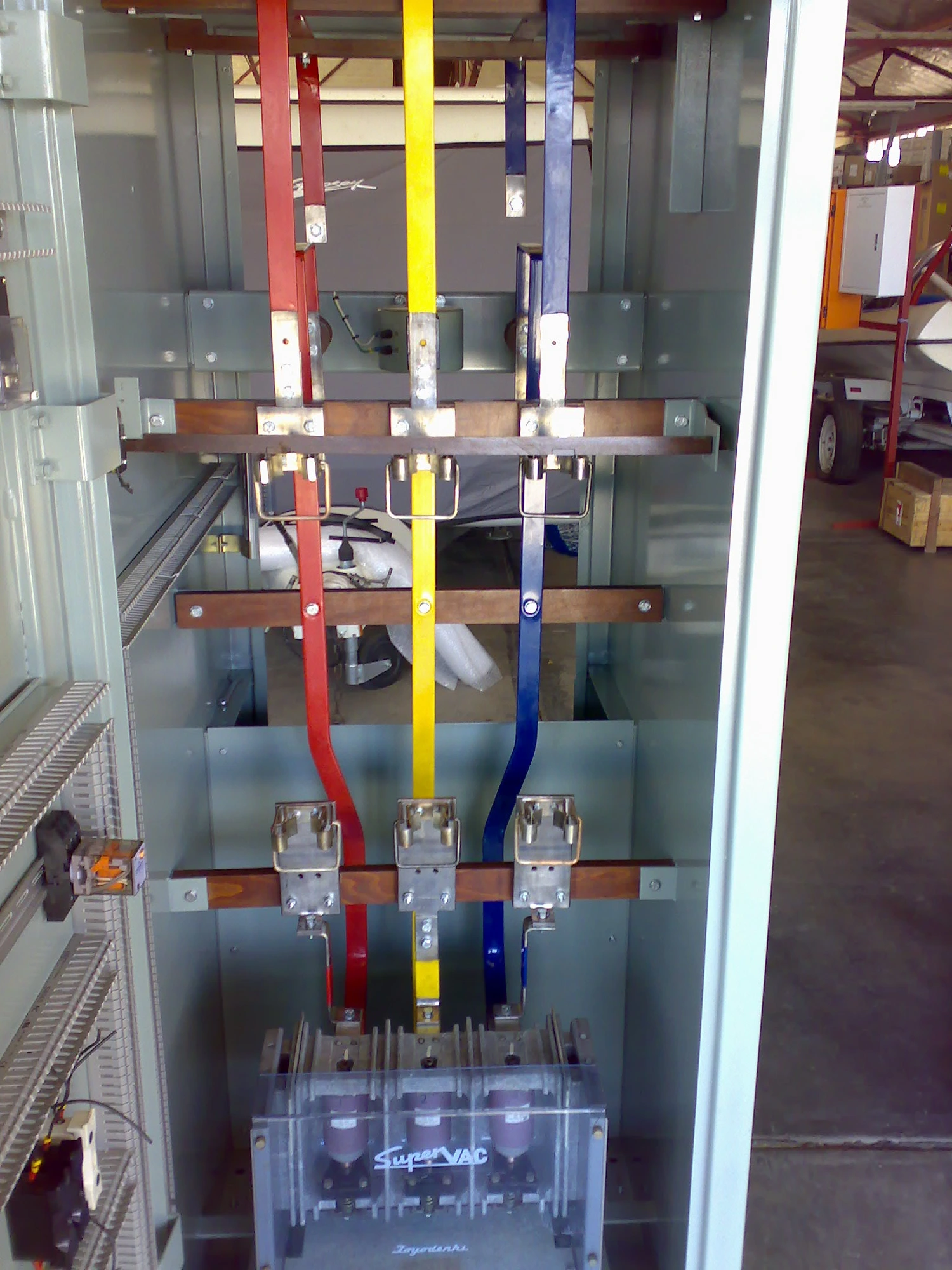

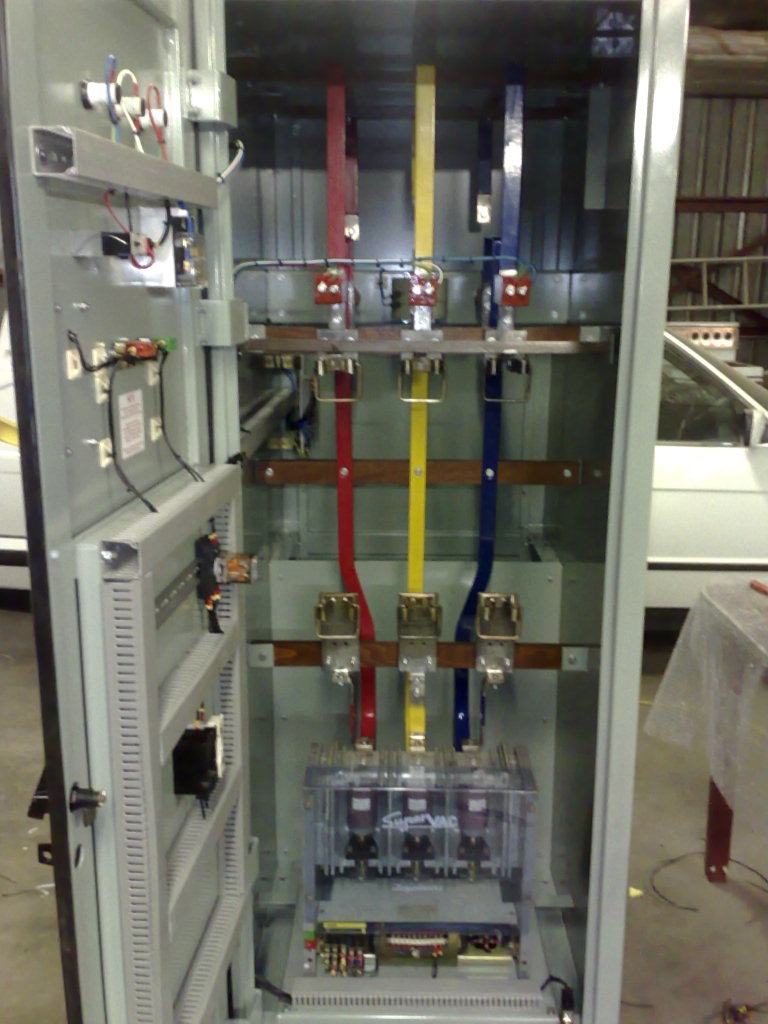

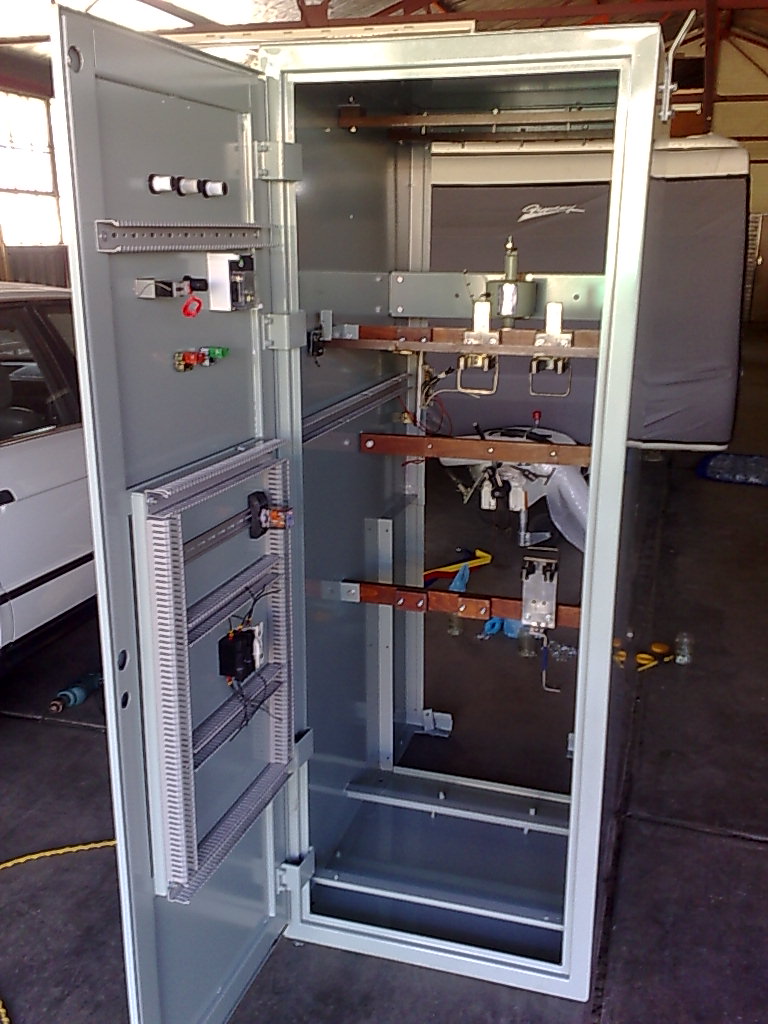

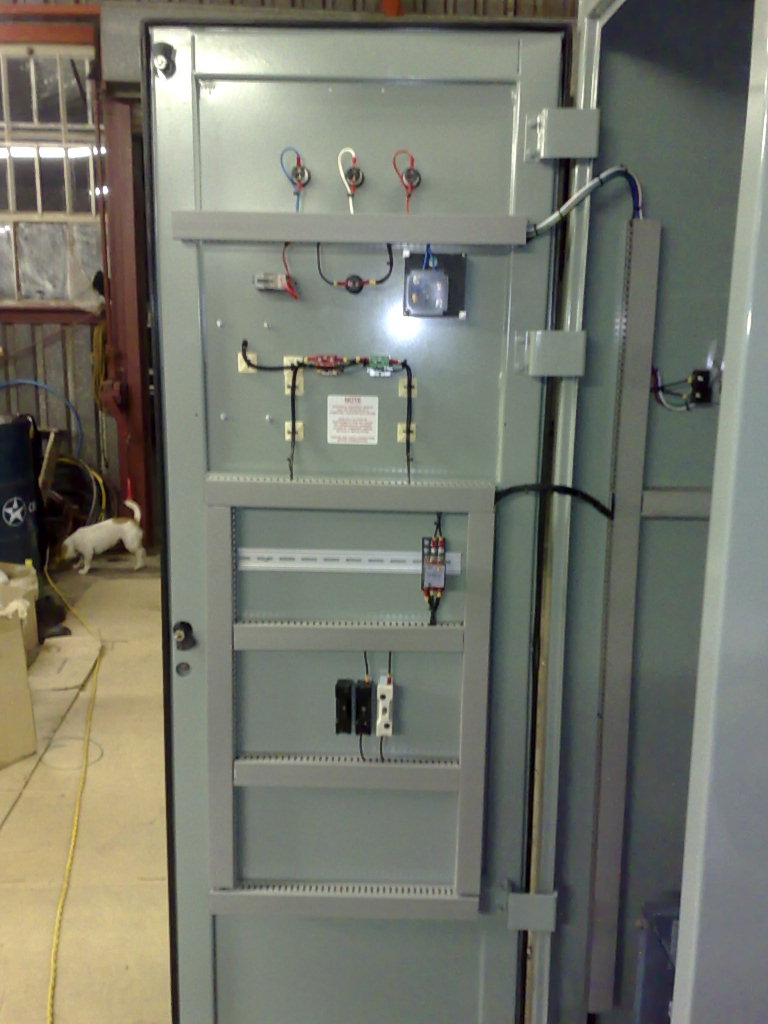

Engineering Gallery
System Benefits
High-Power Motor Control
Engineered for demanding large-pump applications.
Motor Protection
Supports protection of high-value 900kW pump motors.
Reliable Starting
Appropriate starter architecture improves dependable motor startup.
Reduced Electrical Stress
Correct motor-control design helps manage heavy startup demand.
Operational Reliability
Robust electrical control supports critical pumping infrastructure.
Long-Term Support
Ongoing involvement since 2009 demonstrates established WWS experience with high-power pump starter systems.
High Power Requires High-Integrity Electrical Architecture
Very large pump motors are commonly supplied from medium-voltage networks because operating them at lower voltage would result in very high current levels. Medium-voltage operation can significantly reduce current for a given power level, making conductor sizing, switching and system losses more manageable. Typical industrial voltage classes for large motor applications can include 3.3kV, 6.6kV and 11kV, depending on the site infrastructure.
Typical High-Power Starter Configurations
High-power pump starter systems can use various starting methods depending on the electrical supply, motor characteristics and operational requirements. Direct-on-line vacuum starters provide full-voltage starting where the network and motor can tolerate the starting current. Medium-voltage soft starters use controlled solid-state switching to progressively increase voltage during startup. Variable frequency drives provide controlled motor speed and can optimise pump operation where variable-speed control is required.
Vacuum Switching in Medium Voltage Motor Control
Vacuum contactors are widely used in medium-voltage motor-control applications because the switching contacts operate inside a sealed vacuum interrupter. The vacuum environment allows electrical arcs to be extinguished rapidly when the contacts open and protects the switching surfaces from external contamination. This makes vacuum technology well suited to demanding industrial motor-control applications where reliable repetitive switching is required.
- Fast arc interruption
- Sealed contact system
- High switching endurance
- Compact architecture
Operator Control & System Visibility
High-power starter panels can incorporate instrumentation and control interfaces that provide operators with information about electrical conditions and operating status. Depending on the installation, this can include current and voltage indication, local control selectors and interfaces to higher-level automation systems.
Safety-Critical Protection Systems
Thermal Overload Protection
Protects the motor against sustained excessive current that could cause overheating and winding damage.
Short-Circuit Protection
Provides rapid protection against severe electrical faults within the motor or supply circuit.
Phase Loss / Unbalance
Detects abnormal three-phase supply conditions that could damage the pump motor.
Under / Over-Voltage Protection
Monitors electrical supply voltage to identify conditions outside acceptable operating limits.
Earth-Fault Protection
Detects abnormal current flow to earth, protecting personnel and equipment.
Dry-Run Protection
Can stop pumping equipment if the pump loses the required fluid condition, preventing mechanical damage.
System Operation
Mine Electrical Supply
High-power electrical supply from the mine distribution network provides the energy required for large-capacity pumping operations.
900kW Pump Starter Panel
The heavy-duty starter panel provides controlled switching, motor protection and operational control for the 900kW pump motor.
Motor Control & Protection
Protection systems safeguard the high-value pump motor against abnormal electrical and operating conditions including overload, fault currents and supply anomalies.
900kW Pump Motor
The large electric motor converts 900kW of electrical power into mechanical energy, driving the high-capacity pump.
High-Capacity Pumping
The pump moves large volumes of water from underground workings, supporting the mine’s critical water-handling requirements.
Mine Water Management
Reliable pumping infrastructure supports safe underground operations by managing water levels within the mine.
Source
Mine Electrical Supply
High-power electrical supply from the mine distribution network provides the energy required for large-capacity pumping operations.
Control
900kW Pump Starter Panel
The heavy-duty starter panel provides controlled switching, motor protection and operational control for the 900kW pump motor.
Protect
Motor Control & Protection
Protection systems safeguard the high-value pump motor against abnormal electrical and operating conditions including overload, fault currents and supply anomalies.
Drive
900kW Pump Motor
The large electric motor converts 900kW of electrical power into mechanical energy, driving the high-capacity pump.
Pump
High-Capacity Pumping
The pump moves large volumes of water from underground workings, supporting the mine’s critical water-handling requirements.
Output
Mine Water Management
Reliable pumping infrastructure supports safe underground operations by managing water levels within the mine.
Supporting High-Power Pump Infrastructure Since 2009
Welkom Winder Services’ involvement with 900kW pump starter panels at Freddies 9 Shaft extends from 2009 to the present. This ongoing support reflects long-term experience with large motor-control systems operating within demanding mining environments.
